MD-11
1991
Varig was
the first airline in Latin America to operate MD-11 aircraft, in
November 1991. These latest generation aircraft started flying
on the São Paulo-Rio-Paris and Amsterdam routes. The MD-11
cockpit is fully computerized using digital systems. The
navigation system is so sophisticated that it uses laser
gyroscopes. The MD-11 is equipped with winglets at the wing tips,
thus reducing aerodynamic drag and saving about 15% of fuel. The
first two MD-11, PP-VOP and PP-VOQ were officially delivered to
Varig on November 12 1991.
|
|
Manufacturer |
MCDONNEL
DOUGLAS Aircraft Company, Estados Unidos |
|
Engine |
Três turbinas
GE CF6-80C2 D1F de 27.528 Kg de empuxo cada 61.500 libras de
empuxo cada. |
|
Wingspan |
52m |
|
Length |
61,40m |
|
Height |
17,93m |
|
Cruising
speed |
890Km/h |
|
Flight range |
12.000Km |
|
Maximum
Flight Altitude |
13.100m |
|
Maximum
flying time |
14h 58min. |
|
Net Weight |
133.500Kg |
|
Maximum
weight at takeoff |
280.320Kg |
|
Maximum
weight on landing |
199.581Kg |
|
Flight Crew |
02(2 pilotos) |
|
Maximum
number of pax |
380Pax |
|
Maximum
number of pax (VARIG layout) |
282Pax |
|
Maximum fuel
load |
145.124litros |
|
Regular
consumption |
9.650litros/h |
|
Maximum load
capacity |
44.673Kg |

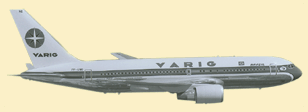

BOEING 767 (EXTENDED
RANGE)
1987
| Since
March 1987, Varig has been operating Boeing 767-200 ER (Extended
Range) aircraft on the international routes. The first B-767-200
ER, flying directly from the plant, received the prefix PP-VNN.
Varig´s B-767-200 ER are aircraft of the latest generation and
the first to be delivered with General Electric CF6-80C2B2, de
avançada tecnologia, grande eficiência e m engines, of state of
the art technology, with a lower level of fuel consumption. This
aircraft is equipped with the FMSCS (Flight Management System).
The FMSCS has a data bank with all information regarding the
plane´s performance and, when necessary, they can be quickly
relayed to the technical crew. This is one of the most
up-to-date systems in existence to serve the commercial aviation
industry. |
|
Manufacturer |
The Boeing
Company, EUA |
|
Engine |
Duas turbinas
GE CF6-80C2B2 de 23.813 Kg de empuxo cada 52.500 libras de
empuxo cada. |
|
Wingspan |
47,57m |
|
Length |
48,54m |
|
Height |
16,14m |
|
Cruising
speed |
935Km/h |
|
Flight range |
8.500Km |
|
Maximum
flying altitude |
12.800m |
|
Flight
autonomy |
11h |
|
Net weight |
112.400Kg |
|
Maximum
weight at take-off |
151.953Kg |
|
Maximum
weight at landing |
122.000Kg |
|
Technical
crew |
03 (2 pilots,
1 flight engineer) |
|
Maximum
number of pax |
290Pax |
|
Maximum
number of pax (VARIG layout) |
193Pax |
|
Maximum fuel
capacity |
61.800litros |
|
Normal
consumption |
7.200litros/h |
|
Maximum cargo
capacity |
13.000Kg |
|
Minimu runway
length for take-off |
2.665m |
|
Minimum ruway
lenght for landing |
1.813m |

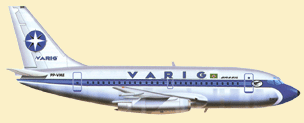

BOEING 737
1974
Continuing the program of renewal and expansion of our fleet,
during 1974 the first four Boeing 737-200 Super Advanced went
into operation, in addition to the DC-10s. The B-737 were
introduced on domestic lines, enabling VARIG to increase the
frequency of its major flights within Brazil, thus providing
additional seats for our clients. The first B-737 Super Advanced,
PP-VME, flew in from the factory in Seattle USA in November
1974. Since then, the company has acquired various series of
this model.
|
|
Manufacturer |
The Boeing
Company, EUA |
|
Engine |
Two Pratt &
Whitney JT8D-17 AR turbines of 16,000 pound thrust each. |
|
Wingspan |
28,35m |
|
Length |
30,53m |
|
Height |
11,13m |
|
Cruising
Speed |
785Km/h |
|
Flight Range |
3.890Km |
|
Maximum
Flight Altitude |
11.300m |
|
Maximum
flying time |
06h 27min |
|
Net Weight |
43.091Kg |
|
Maximum
weight at takeoff |
52.390Kg |
|
Maximum
weight at arrival |
48.534Kg |
|
Flight Crew |
02 (2
pilotos) |
|
Maximum
number of pax |
140 Pax |
|
Maximum
number of pax (VARIG layout) |
109Pax |
|
Maximum fuel
load |
19.540litros |
|
Regular
consumption |
3.000litros/h |
|
Maximum load
capacity |
13.000Kg |
|
|
|
